Twin vertical breakdown saw
The twin vertical breakdown saw has a sharp chain conveyor which carries logs through the twin narrowband thin kerf headrigs.
The saw offers 4 changeable width settings which are selected mechanically from a turret.
The twin vertical can also be used as a merry go round system, where the centre of the cant and the sideboards can be resawn or edged.
Using this system, one would need only an efficient resaw to completely saw timber into finished boards.
Specifications:
- Max. log diameter 350 mm
- Max. cut between blades 300 mm
- Min. cut between blades 80 mm
- Infeed bed length 3300 mm
- Outfeed bed length 3300 mm
- Feed works Sharp chain
- Feed speed 6 -18 m/min
- Blade width 32-40 mm
- Blade length 4330 mm
- Bandwheel solid steel diameter 720 mm
- Number of heads 2
- Drive motors 2x 15 kW
- Feed motor 0.75 kW

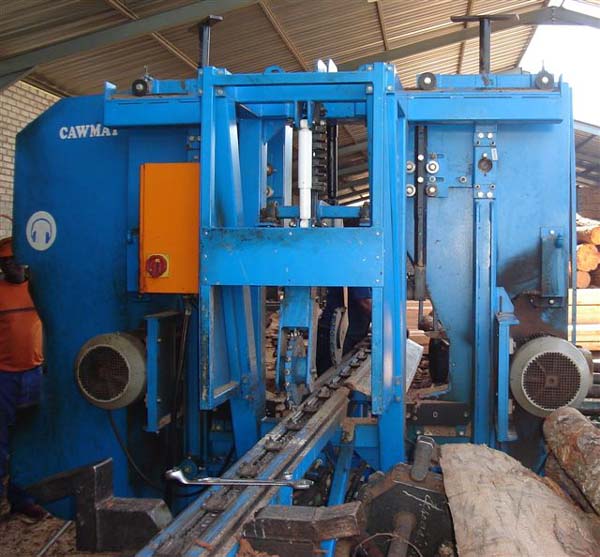

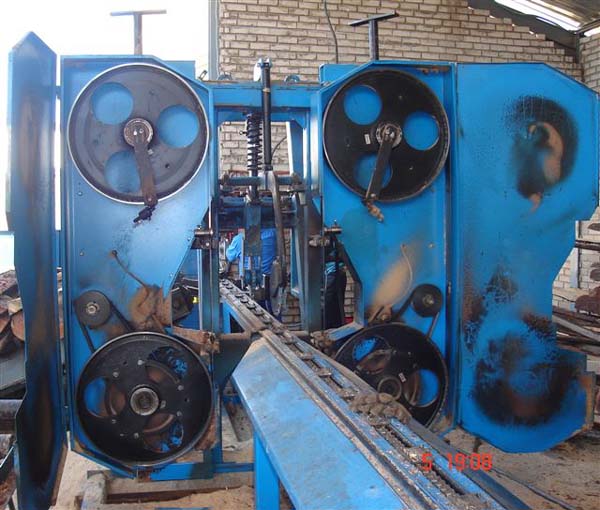

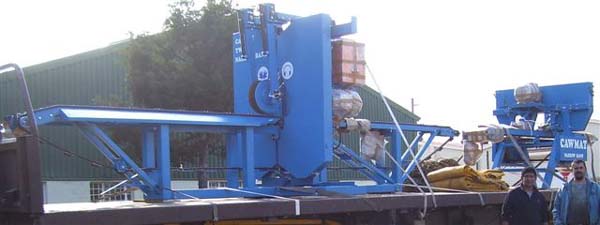

Twin Vertical Breakdown Image Gallery
